InterfaceBuilder

class InterfaceBuilder(configuration_0, configuration_1, shortest_surface_lattice_vector=None, longest_surface_lattice_vector=None, minimum_surface_lattice_vector_angle=None, max_surface_area=None, grid_density=None, strain_max=None, angle_min=None, angle_max=None, angle_delta=None, layer_tolerance0=None, layer_tolerance1=None)

This class generates interfaces from two surface configurations. These configurations must be properly cleaved surfaces as generated by the cleave method on BulkConfiguration. This means that the lattice vectors are in a standardized form: a vector along the x-axis, a-b vector in the x-y plane, and the c vector along the z-axis.

Parameters:
  • configuration_0 (list of type BulkConfiguration) – A configuration (or list of configurations) for the left half of the interface.

  • configuration_1 (list of type BulkConfiguration) – A configuration (or list of configurations) for the right half of the interface.

  • shortest_surface_lattice_vector (PhysicalQuantity of type length) – The minimum length of any surface vector.
    Default: 0.0 * Angstrom.

  • longest_surface_lattice_vector (PhysicalQuantity of type length) – The maximum length of either surface vector.
    Default: 1e10 * Angstrom.

  • minimum_surface_lattice_vector_angle (PhysicalQuantity of type angle) – The smallest allowed angle between the surface lattice vectors.
    Default: 0.0 * Degrees.

  • max_surface_area (PhysicalQuantity of type length**2) – The maximum surface area.

  • grid_density (2-tuple of type int) – The number of times that the a and b lattice vectors of the first configuration should be repeated during the lattice match search. Larger values consider more possible repetitions.

  • strain_max (float) – The largest engineering strain that will be considered a valid match. The default value of 1 corresponds to a 100% deformation.
    Default: 1.0.

  • angle_min (PhysicalQuantity of type angle) – The minimum rotational angle of the second lattice with repect to the first.
    Default: 0.0 * Degrees.

  • angle_max (PhysicalQuantity of type angle) – The maximum rotational angle of the second lattice with repect to the first.
    Default: 180.0 * Degrees.

  • angle_delta (PhysicalQuantity of type angle) – The resolution of the rotational angles of the second lattice. Smaller values lead to a higher resolution search of rotational values.
    Default: 4.0 * Degrees.

  • layer_tolerance0 (int) – Layers are detected by grouping atoms by their z-coordinates. Increase this tolerance to combine nearby off-lattice atoms into the same layer. Range: [-10, 4].
    Default: -10.

  • layer_tolerance1 (int) – Layers are detected by grouping atoms by their z-coordinates. Increase this tolerance to combine nearby off-lattice atoms into the same layer. Range: [-10, 4].
    Default: -10.

bestMatch(strain_method=<class 'NL.ComputerScienceUtilities.NLFlag._NLFlag.StrainSecond'>)
Parameters:

strain_method (StrainFirst | StrainSecond | StrainBoth) – Specifies which layer should be strained. If StrainFirst is given, then the first layer will be strained and the second layer will have no strain, while the opposite is true if StrainSecond is chosen. If StrainBoth is given, then each layer is strained to an intermediate lattice.

Returns:

The match with the highest score. High scoring structures balance system size and strain. If no matches were found None is returned.

Return type:

InterfaceMatch | None

matches(strain_method=<class 'NL.ComputerScienceUtilities.NLFlag._NLFlag.StrainSecond'>)
Parameters:

strain_method (StrainFirst | StrainSecond | StrainBoth) – Specifies which layer should be strained. If StrainFirst is given, then the first layer will be strained and the second layer will have no strain, while the opposite is true if StrainSecond is chosen. If StrainBoth is given, then each layer is strained to an intermediate lattice.

Returns:

A list of all lattice matches sorted by mean absolute strain.

Return type:

list of type InterfaceMatch

nlprint(stream=None)

Print out table of matches.

Parameters:

stream (python stream) – The stream the data should be printed to.
Default: NLPrintLogger()

Usage Examples

Create an interface using Si (100) and Au (111) surfaces.


# Cleave each bulk configuration. This is required before using the interface builder.
si_100 = bulk_si.cleave(1, 0, 0)
au_111 = bulk_au.cleave(1, 1, 1)

# Setup interface builder. The configurations should be cleaved first.
interface_builder = InterfaceBuilder(si_100, au_111)

# Get all of the interface matches, specifying that the second surface (gold) should be strained.
# The matches are sorted from lowest to highest mean absolute strain.
matches = interface_builder.matches(strain_method=StrainSecond)

# Loop over all matches and print out information and save each to a hdf5 file.
print('{:>20s} {:>10s}'.format('number of atoms', 'strain (%)'))
for match in matches:
    # Get the number of atoms and strain from the match.
    number_of_atoms = match.numberOfAtoms()
    mean_absolute_strain = 100.0 * match.meanAbsoluteStrain()

    # Print out information about the match.
    print('{:20d} {:10.3f}'.format(number_of_atoms, mean_absolute_strain))

    # Make the interface configuration and save it to a file.
    interface_configuration = match.makeInterface()
    nlsave('matches.hdf5', interface_configuration)

# Scatter plot of number of atoms vs strain.
import pylab
pylab.scatter(
    [100 * match.meanAbsoluteStrain() for match in matches],
    [match.numberOfAtoms() for match in matches],
)
pylab.xlabel('Mean Absolute Strain (%)')
pylab.ylabel('Number of Atoms')
pylab.xscale('log')
pylab.savefig('size_strain_plot.png')

The script will loop over all possible interface matches and print the number of atoms in the structure and the mean absolute strain as well as generate the following plot:

../../../_images/size_strain_plot.png

Fig. 160 The number of atoms as a function of mean absolute strain.

The script can be downloaded: si_au_interface.py

Alternatively by using the bestMatch method an interface structure can be generated in one line of code like so:

interface_configuration = InterfaceBuilder(
   bulk_1.cleave(1, 0, 0),
   bulk_2.cleave(1, 1, 1)
).bestMatch().makeInterface()

Interface Builder

The Interface Builder of QuantumATK allows the construction of complex interfaces by automatically matching the 2D unit cells of two different surfaces and compare the strain. The input is two crystal surfaces which can be created from bulk systems using the Surface (Cleave) tool. A specified number of atomic layers can be added for each material, an atomic layer being defined as the atoms that lie with the same distance to the AB-plane of the unit cell.

../../../_images/builder3.png

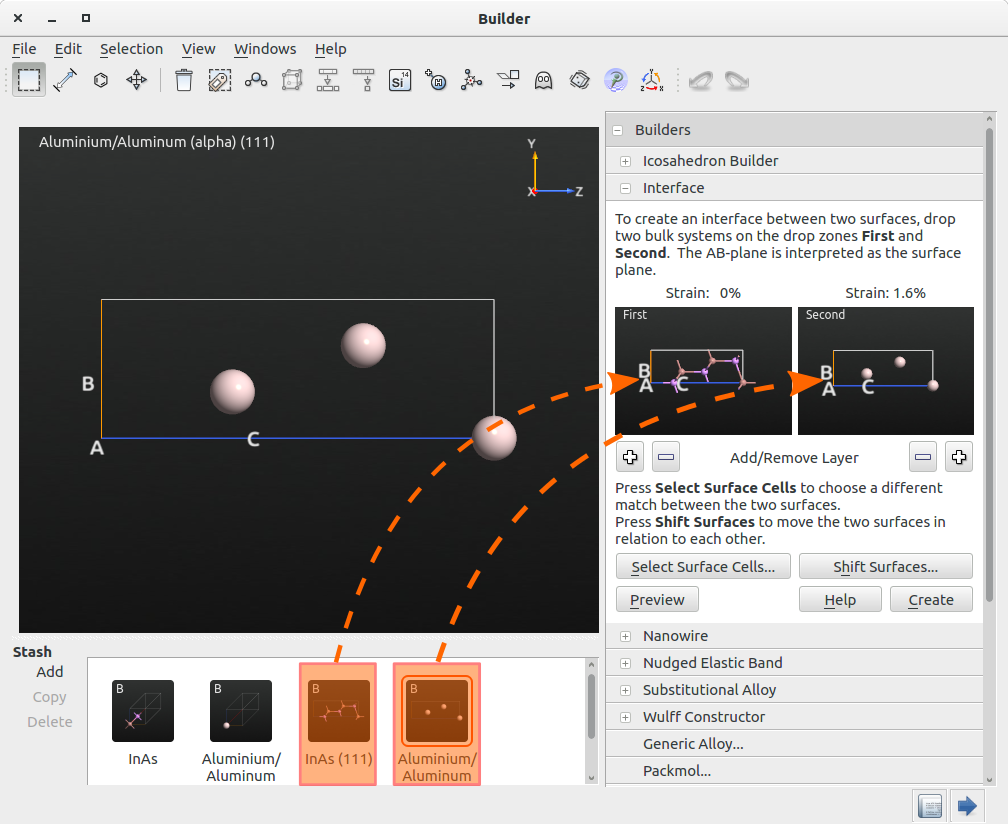

Fig. 161 The interface builder used on InAs(111) and Al(111).

Select Surface Cells

The Select Surface Cells button is used to view the results of the lattice matching. This opens a window where the strain of all the found matches is plotted against the total number of atoms in the interface unit cell, see Fig. 162. The selected unit cell is the red dot, one can select alternative matches by clicking the blue dots.

../../../_images/match.png

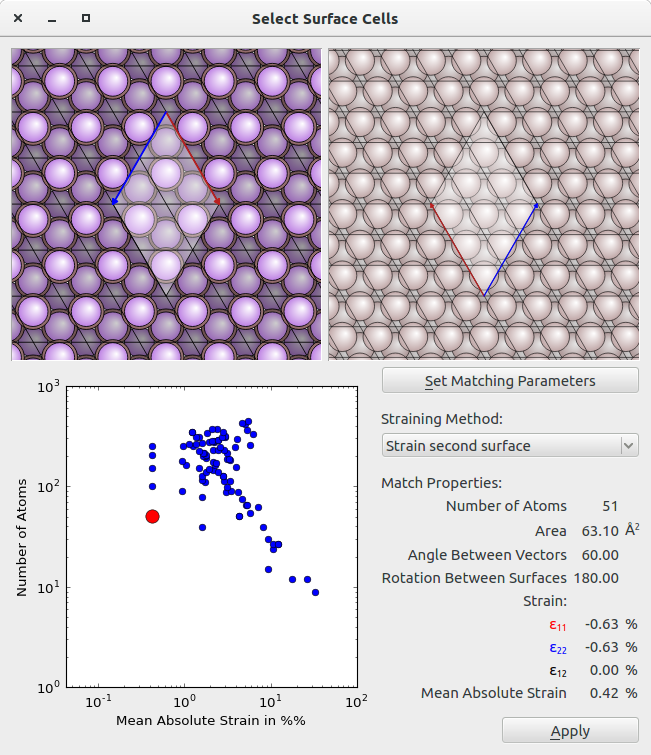

Fig. 162 The Select Surface Cells window.

../../../_images/drawing4.png

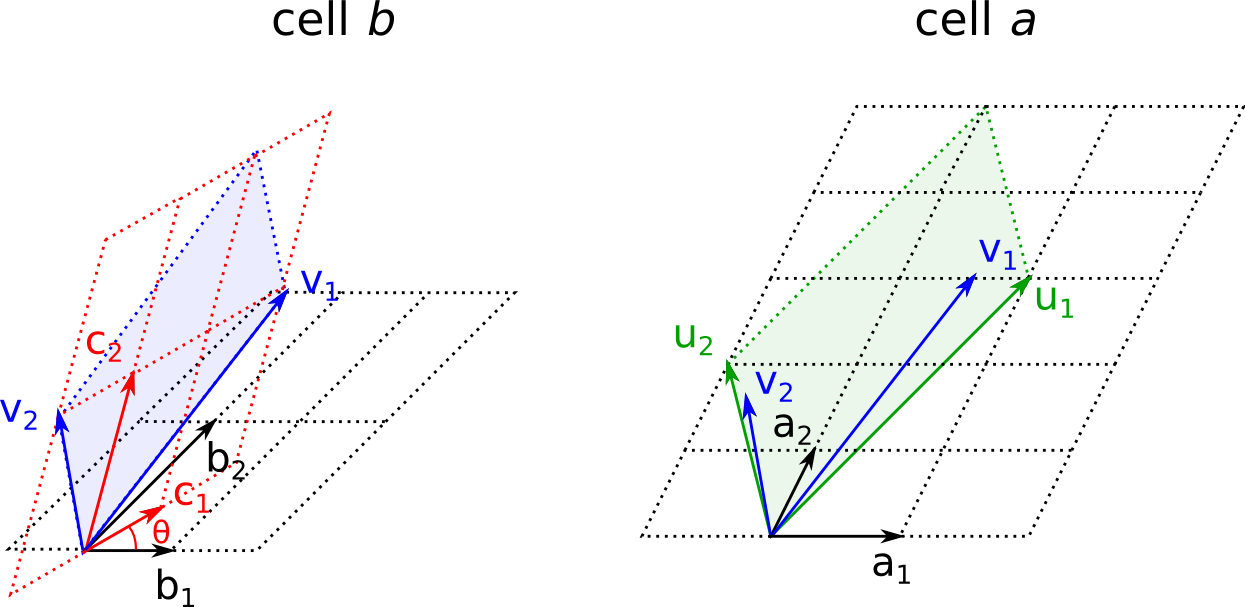

Fig. 163 The matching of two surface lattices. \((a_1,a_2)\) and \((b_1,b_2)\) are the unit cell vectors of the two surfaces, and \((c_1,c_2)\) is the rotated cell of the b surface. \(v_1\) and \(v_2\) are a linear combination of \(c_1\) and \(c_2\). \(u_1\) and \(u_2\) are \(v_1\) and \(v_2\), respectively, truncated to the grid of cell a.

The procedure for matching the two lattices is as follows;

  • The unit cell vectors of surface a \((a_1,a_2)\) and b \((b_1,b_2)\) are extracted.

  • The b cell is rotated by an angle \(\theta\), \((c_1,c_2)\) in Fig. 163. This is done for a set of angles \(\theta \in [\theta_{min};\theta_{max}]\) with an default increment of \(\delta_\theta = 4\) degrees. For each of the rotations;

    • All possible lattice vectors, \(v\), where \((c_1,c_2)\) has been repeated a maximum of \((n^{max},m^{max})\) times is found, \(v_1\) or \(v_2\) in Fig. 163.

      \[v = i\cdot c_1+j \cdot c_2, \qquad i \in [-n^{max};n^{max}], \, j \in [0,m^{max}].\]
    • We express \(v\) in the lattice of cell a by creating a linear transformation,

      \[\begin{split}U = \begin{pmatrix} a_{1,x} & a_{2,x} \\ a_{1,y} & a_{2,y} \end{pmatrix}, \qquad v = U s,\end{split}\]

      where \(s = U^{-1}v\) describes how \(v\) is expressed in the unit cell vectors \(a_1\) and \(a_2\).

    • The vector, \(v\), needs to be truncated to the grid of a. This is done by rounding the elements of \(s\) to integers, \(s'\), and calculating

      \[\begin{aligned} u &= U s'.\end{aligned}\]

      \(u\) (\(u_1\) or \(u_2\) in Fig. 163) corresponds to the lattice vector of cell a that \(v\) will be matched to.

    • All possible cells, \((v_1,v_2)\), of b is created by iterating through all the found lattice vectors \(v\) two by two.

    • The strain tensor from the \((v_1,v_2)\) cell to the corresponding \((u_1,u_2)\) cell is calculated. This can be done using the following three straining methods; only straining \((v_1,v_2)\), only straining \((u_1,u_2)\), or straining both equally. The method can by chosen in the Select Surface Cells window. For the first straining method, we get

      \[\begin{split}\begin{aligned} \varepsilon_{11} &= \left| \frac{v_{1,x}}{u_{1,x}} \right| - 1. \\ \varepsilon_{22} &= \left| \frac{v_{2,y}}{u_{2,y}} \right| - 1. \\ \varepsilon_{12} &= \frac{1}{2} \frac{v_{2,x}-\frac{v_{1,x}}{u_{1,x}}u_{2,x}}{u_{2,y}}.\end{aligned}\end{split}\]

      Equivalent formulas are used for the second straining method. If both surfaces should be strained equally, an intermediate cell is created between the \((v_1,v_2)\) and \((u_1,u_2)\) cell. This cell in constructed s.t. the strain tensor from the first lattice to the intermediate one is exactly minus the stress tensor from the second to the intermediate one. From the stress tensor, we find the mean absolute stress \(\varepsilon^{av}\),

      \[\begin{aligned} \varepsilon^{av} = \frac{\varepsilon_{11}+\varepsilon_{22}+\varepsilon_{12}}{3}.\end{aligned}\]

      Lattices with a mean absolute stress outside the specified limits \(\varepsilon^{av} \in [\varepsilon_{min}; \varepsilon_{max}]\) are discarded and strains within a specified \(tolerance\) are considered equal.

    • The total number of atoms in the corresponding interface is found by considering the area of the cell and the lattice match is ranked according to the following score, \(S\);

      \[\begin{split}\begin{aligned} S_{\phi} &= \sum_{\alpha} 1-7\mathrm{e}^{-\frac{(\phi-\alpha)^2}{15}}, \\ \alpha &\in [15,30,45,60,90,120,150] \, \mathrm{degrees}, \\ S &= \mathrm{e}^{-\varepsilon^{av}-\frac{A}{10}-S_{\phi}},\end{aligned}\end{split}\]

      where \(\phi\) is the angle between the two vectors of the cell, and \(A\) is the area of the cell. This score favours the cells where the angle between the vectors are close to any of the angles in \(\alpha\), the mean absolute strain is low and the area is small. This is based on the assumption that a small unit cell will be energetically favourable and that a low strain will minimize the amount of defects. The score is a subjective number, created to have a default guess for the interface, and is therefore not meant as a general way of predicting the most physically sensible interface.

  • The lattice match with the best score will be the default choice of the builder.

The matching parameters can be changed using the Set Matching Parameters button in the Select Surface Cells window, see Fig. 164. The default parameters are listed in the table below.

Table 33 Default matching parameters.

\(n^{max}\)

6

\(m^{max}\)

6

\(\theta_{min}\)

0 degrees

\(\theta_{max}\)

180 degrees

\(\delta_{\theta}\)

4 degrees

\(\varepsilon_{min}\)

-100 %

\(\varepsilon_{max}\)

100 %

\(tolerance\)

\(1^{-6}\)

../../../_images/parameters.png

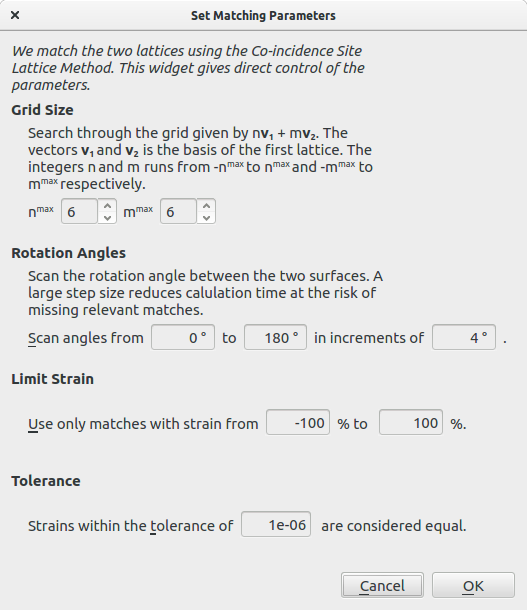

Fig. 164 The Set Matching Parameters window.

Shift Surfaces

When a suitable lattice match has been found, the Shift Surfaces button can be used to shift one surface w.r.t. to the other. This can be done either manually or by minimizing the energy of the system. Using the second option, the geometry is optimized using a classical potential from the QuantumATK Classical package and with the constrains that each material acts as a rigid body. The optimization method is LBFGS and the optimization procedure ends when the inter-atomic forces are below 0.02 eV/Å. The calculated displacement vector is shown in the window together with the total energy of the system, if the Calculate energy checkbox is checked. The displacement is automatically applied to the interface. It should be noted, that his procedure only finds local minima of which there could be several. To find the global minima one should optimize the structure using several different starting points determined by the symmetry.

../../../_images/displace.png

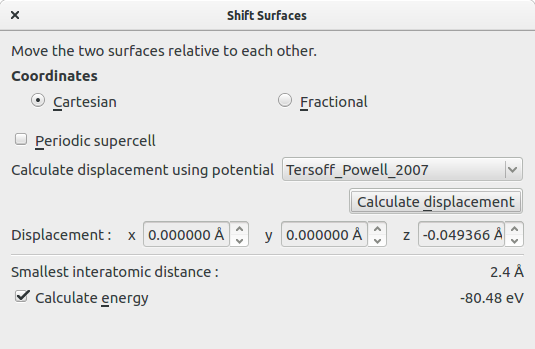

Fig. 165 The Shift Surfaces window.

Notes

  • The input structures must be surfaces. In QuantumATK this means that the lattice vectors are prepared according to the following convention: the a-vector is along the x-axis, the b vector is in the a-b plane, the c vector is along the z-axis. The easiest way to prepare such a structure is to use the cleave method of BulkConfiguration.

  • The matches and bestMatch methods return a list of InterfaceMatch objects.

  • The bestMatch method returns a match that balances the total number of atoms in the system with the absolute mean strain. It can be used to find a good match without having to filter through all possible matches.
