Scatter And Bars

../../../../_images/scatter_and_bars.png
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96

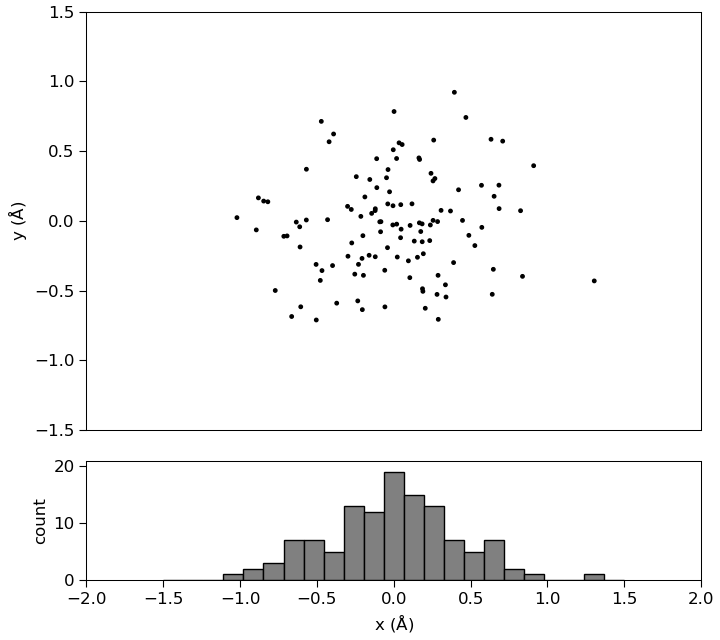

# Plot a scatter plot and histogram of the same data, in two different
# plot frames.

# Data
xs = [
     0.83735136, -0.03760732,  0.64764615, -0.56916293,  0.16771351,  0.36879221,
    -0.60997142,  0.25521883,  0.11830685,  0.25563545, -0.12038023, -0.37151165,
    -0.39852745,  0.04760468,  0.01874401, -0.14411779, -0.47167539,  0.09492484,
    -1.0206757 , -0.20679976,  0.64055442, -0.11149991, -0.8195419 , -0.71561298,
     0.20467069,  0.04404555, -0.12067043, -0.00652415,  0.1842815 ,  1.30424258,
     0.18665118,  0.33963749, -0.50445047,  0.23366367,  0.16632812, -0.18822706,
    -0.03928118,  0.28480758, -0.77132285, -0.46731356, -0.00351658,  0.57264734,
     0.4690202 ,  0.39410025, -0.05785553,  0.38895173, -0.60553757,  0.65265759,
     0.68512054,  0.82472603, -0.42096647, -0.39180296,  0.13309577, -0.08609454,
     0.2812388 ,  0.90992544, -0.0474478 , -0.05890777, -0.63456302, -0.2440444 ,
    -0.88108586, -0.08369874,  0.2674326 , -0.43100448, -0.56871021,  0.52732416,
    -0.69443328, -0.20111549, -0.84669947, -0.16063656,  0.16344137,  0.10416594,
     0.03419954, -0.6121973 ,  0.57048945, -0.23452936, -0.27359465,  0.24200477,
     0.04523835, -0.25387563, -0.66462862, -0.29825646,  0.10609641, -0.02768023,
     0.19217027,  0.70849361,  0.01809639, -0.09136528,  0.05425135, -0.47819754,
    -0.27667665,  0.02260149, -0.12150936, -0.04109076,  0.33587457,  0.6325594 ,
     0.48836006,  0.28791998, -0.30082755,  0.15389378,  0.44696974,  0.42120839,
    -0.1975828 , -0.22986685,  0.18926104, -0.89475401, -0.11048363, -0.21441636,
    -0.50558513,  0.30749674, -0.15624408,  0.00163378, -0.20476512,  0.28942828,
     0.23776839, -0.00519347,  0.18484562,  0.17532173,  0.2595802 ,  0.68402716
] * Angstrom

ys = [
    -0.39715421,  0.36792564, -0.34670964,  0.00663009,  0.44020473,  0.07102315,
    -0.18666689,  0.28657916,  0.12237538,  0.00391008,  0.08724919, -0.5892403,
    -0.31992659, -0.05920487, -0.023152  ,  0.05400336,  0.71322692, -0.28597838,
     0.02357725, -0.2685703 , -0.52583313,  0.44584184,  0.13713652, -0.11021891,
    -0.62578892, -0.12033264, -0.25678569, -0.02885627, -0.02127524, -0.42985407,
    -0.48594983, -0.54523483, -0.70977806, -0.14108246, -0.01369695,  0.17182939,
     0.12188442, -0.00476866, -0.49848981, -0.35582173,  0.50985858, -0.04619683,
     0.74132604,  0.92157524, -0.61588049, -0.29860316, -0.61532293,  0.17643255,
     0.08809562,  0.07311062,  0.56711457,  0.62286086, -0.14466861, -0.07766289,
    -0.52641952,  0.39565981,  0.30934238, -0.35355341, -0.00837116,  0.31705944,
     0.16510211, -0.00542853,  0.30364316,  0.00874412,  0.3702261 , -0.17669301,
    -0.10746404, -0.10582702,  0.14214246, -0.24628123,  0.45151432, -0.4065585 ,
     0.559458  , -0.04214145,  0.25515366, -0.57307117, -0.15778443,  0.34097717,
     0.11634075, -0.38137623, -0.68484207, -0.25304297, -0.03233032,  0.20868762,
    -0.23503984,  0.57160049,  0.44713183, -0.00655961,  0.54723515, -0.42624796,
     0.08212732, -0.25878557,  0.07400322, -0.19167848, -0.4577302 ,  0.58497679,
    -0.10335792, -0.38983413,  0.1043278 , -0.2605955 ,  0.00364975,  0.22308884,
    -0.38997689, -0.31123183, -0.50457249, -0.06438019,  0.23835865,  0.03252147,
    -0.31160181,  0.0756    ,  0.29678598,  0.78384221, -0.63570551, -0.7051451 ,
    -0.02914059,  0.10867163, -0.14926761, -0.07602382,  0.57902892,  0.25606282
] * Angstrom

# Create models.
model = Plot.PlotModel(Angstrom, Angstrom)
model.xAxis().setVisible(False)
model.yAxis().setLabel('y')

model_x = Plot.PlotModel(x_unit=Angstrom)
model_x.xAxis().setLabel('x')
model_x.yAxis().setLabel('count')
model_x.yAxis().setAutoscalePadding(0, 0.1)

# Build and add scatter plot
scatter = Plot.Scatter(xs, ys)
scatter.setLabel('Scatter')

model.addItem(scatter)

# Add histogram as for x-values.
x_bins = numpy.linspace(-1.5, 1.5, 24, endpoint=True) * Angstrom
x_counts = numpy.histogram(
    xs.inUnitsOf(Angstrom),
    x_bins.inUnitsOf(Angstrom)
)[0]
model_x.addItem(Plot.VerticalBar(x_bins, x_counts))

# Change limits.
model.setLimits('x', -2, 2)
model.setLimits('y', -1.5, 1.5)
model_x.setLimits('y')

# Create layout.
layout = Plot.GridLayout(rows=4, columns=1)
layout.setMode(Plot.LAYOUT_MODES.SHARE_X)

# Add main model.
frame = Plot.PlotFrame(use_frame_model=False)
frame.addModel(model)
layout.addItem(frame, row=0, column=0, height=3, width=1)

# Add x model.
layout.addModel(model_x)

# Show the plot for interactive editing.
Plot.show(layout)

# Save the plot (can also be saved to svg, pdf, jpeg or hdf5).
Plot.save(layout, 'scatter_and_bars.png')

References: Plot.VerticalBar, Plot.PlotFrame, Plot.PlotModel, Plot.GridLayout, Plot.save, Plot.show, Plot.Scatter.

↩ Go back to Plots
